Riverine Flooding Hazard

The landslide susceptibility map for current climate conditions highlights regions vulnerable to landslides caused by earthquakes or precipitation. This map was derived by combining the two susceptibility layers described below: for each cell, the highest value between the two was selected. Classes 2 and 3 are categorized as "Moderate", and classes 4 and 5 as "High". Class 1 denotes no susceptibility and is not shown. 1) The earthquake-induced landslide susceptibility map indicates the areas of the world that are more prone to landslides triggered by earthquakes. The landslide susceptibility is based on the model developed by NGI (Nadim et al., 2006, 2013; Jaedicke et al., 2013) but with improvements and refinements. The earthquake-induced landslides susceptibility map classifies the terrain into five susceptibility classes by combining slope, vegetation, lithology, and soil moisture information from global datasets. The weights of different susceptibility factors were calibrated to the information available in landslide inventories and physical processes. 2) The precipitation-induced landslide susceptibility map for the existing climate indicates the areas of the world that are more prone to landslides in the current climate conditions. The landslide susceptibility is based on the model developed by NGI (Nadim et al., 2006, 2013; Jaedicke et al., 2013) but with improvements and refinements. The precipitation-induced landslides susceptibility map for the current climate classifies the terrain into five susceptibility classes by combining slope, vegetation, lithology, and antecedent rainfall information from global datasets. Antecedent rainfall information has been obtained from the W5E5 dataset for the period 1979-2016. The weights of different susceptibility factors were calibrated to the information available in landslide inventories and physical processes. Note: This layer represents landslide susceptibility and not landslide hazard. It does not incorporate triggering factors (e.g., earthquake ground motion or rainfall intensity/return periods). Hazard can only be derived by combining susceptibility with a defined trigger scenario. The map has a resolution of 3 arc-sec. (~93 meters at the equator; east–west distance decreases with latitude). Background paper: A new model for global landslide susceptibility assessment and scenario-based hazard assessment (2003) Rosa M. Palau, Farrokh Nadim, Eivind Paulsen, Erlend Storrøsten https://giri.unepgrid.ch/sites/default/files/2023-06/20230615-NGI_manuscript_GIRI_landlside_hazard_model.pdf Release date: Sun Apr 30 2023 The layer was clipped to the geographic boundaries of 1) IDB Borrowing Member Countries, 2) Caribbean Development Bank (CDB) Borrowing Countries, 3) Organization of Eastern Caribbean States (OECS) Member Countries. VECTORIZED VERSION AVAILABLE HERE: Landslide Susceptibility

The storm surge hazard map indicates the mean run-up height on the coast for seven return periods: 10, 25, 50, 100, 250, 500, 1000 years. The map has coastal coverage with points in the countries with storm surge hazard. The data were classified into three hazard categories—low, moderate, and high—based on storm surge run-up heights for a 250-year return period, a widely used standard for coastal hazard zoning and infrastructure risk assessment. Run-up values below 0.1 meters are considered as “Low”; run-up values between 0.1 meters and 2 meters (inclusive) are considered as “Moderate”; run-up values greater than 2 meters are considered as “High”. Storm surge hazard is modeled only along the coastline. The process involves generating a grid along the coastline and 5km inland. In fact, no backwater effects were modeled, this is only due to the continent’s contour map (shapefile) version used to create the grid mentioned on the coastline. The tropical cyclone events used for the elaboration of this map consider climate change based on models representative concentration pathways (RCP) scenarios. Climate change scenario: SSP5 RCP8.5 In this project Mediterranean tropical-like cyclones were not included in the hazard assessment process. We considered only tropical cyclones as storms that develop in areas of low pressure over tropical oceans, and that are associated with several hazards such as strong winds and storm surge. These two hazards were assessed at a global level but given that although tropical cyclones are formed along the North Atlantic Ocean but do not occur in Europe, neither strong wings nor storm surge were modeled for European countries. Background paper: Multi-hazard Disaster Risk Model of Infrastructure and Buildings at the Global Level (2023). Cardona, O.D., Bernal, G.A., Villegas, C.P., Molina, J.F., Herrera, S.A., Marulanda, M.C., Rincón, D.F., Grajales, S., Marulanda, P.M., Gonzalez, D., Maskrey, A. (2023). https://giri.unepgrid.ch/sites/default/files/2023-11/2.4-INGENIAR-CDRI-Background-Report-Risk-model.pdf Release date: Fri Jun 30 2023 The layer was clipped to the geographic boundaries of 1) IDB Borrowing Member Countries, 2) Caribbean Development Bank (CDB) Borrowing Countries, 3) Organization of Eastern Caribbean States (OECS) Member Countries.

Storm surge hazard is modeled only along the coastline. The process involves generating a grid along the coastline and 5km inland. In fact, no backwater effects were modeled, this is only due to the continent’s contour map (shapefile) version used to create the grid mentioned on the storm surge hazard map indicates the mean run-up height on the coast for seven return periods: 10, 25, 50, 100, 250, 500, 1000 years. The map has coastal coverage with points in the countries with storm surge hazard coastline. The data were classified into three hazard categories—low, moderate, and high—based on storm surge run-up heights for a 250-year return period, a widely used standard for coastal hazard zoning and infrastructure risk assessment. Run-up values below 0.1 meters are considered as “Low”; run-up values between 0.1 meters and 2 meters (inclusive) are considered as “Moderate”; run-up values greater than 2 meters are considered as “High”. In this project Mediterranean tropical-like cyclones were not included in the hazard assessment process. We considered only tropical cyclones as storms that develop in areas of low pressure over tropical oceans, and that are associated with several hazards such as strong winds and storm surge. These two hazards were assessed at a global level but given that although tropical cyclones are formed along the North Atlantic Ocean but do not occur in Europe, neither strong wings nor storm surge were modeled for European countries. Background paper: Multi-hazard Disaster Risk Model of Infrastructure and Buildings at the Global Level (2023). Cardona, O.D., Bernal, G.A., Villegas, C.P., Molina, J.F., Herrera, S.A., Marulanda, M.C., Rincón, D.F., Grajales, S., Marulanda, P.M., Gonzalez, D., Maskrey, A. (2023). https://giri.unepgrid.ch/sites/default/files/2023-11/2.4-INGENIAR-CDRI-Background-Report-Risk-model.pdf Release date: Fri Jun 30 2023 The layer was clipped to the geographic boundaries of 1) IDB Borrowing Member Countries, 2) Caribbean Development Bank (CDB) Borrowing Countries, 3) Organization of Eastern Caribbean States (OECS) Member Countries.

The tsunami hazard map indicates the mean wave run-up height on the coast for a return period of 475 years. The map has coastal coverage with points in the countries with tsunami hazard. Run-up values below 0.1 m are considered as “Low”; run-up values between 0.1 m and 2 m (inclusive) are considered as “Moderate”; run-up values greater than 2 m are considered as “High”. Background paper: Multi-hazard Disaster Risk Model of Infrastructure and Buildings at the Global Level (2023). Cardona, O.D., Bernal, G.A., Villegas, C.P., Molina, J.F., Herrera, S.A., Marulanda, M.C., Rincón, D.F., Grajales, S., Marulanda, P.M., Gonzalez, D., Maskrey, A. (2023). https://giri.unepgrid.ch/sites/default/files/2023-11/2.4-INGENIAR-CDRI-Background-Report-Risk-model.pdf Release date: Fri Jun 30 2023 The layer was clipped to the geographic boundaries of 1) IDB Borrowing Member Countries, 2) Caribbean Development Bank (CDB) Borrowing Countries, 3) Organization of Eastern Caribbean States (OECS) Member Countries.

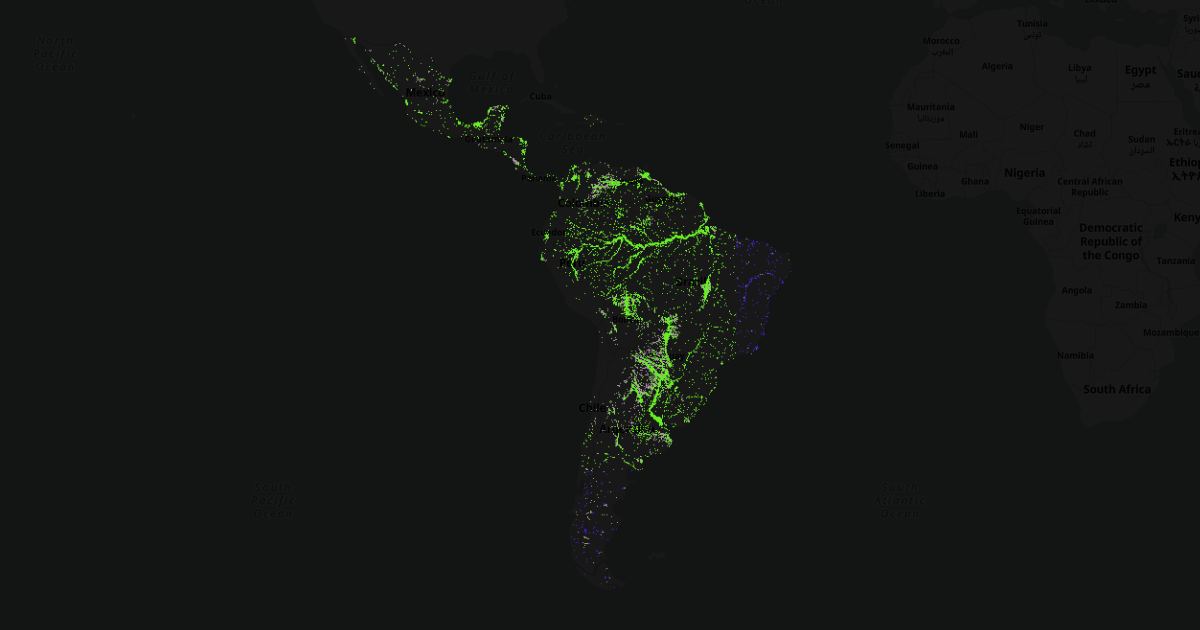

This dataset is the output from the Global Flood Model intercomparison project undertaken on behalf of the Global Flood Partnership. The methodology is described in Trigg et al., 2016, "The credibility challenge for global fluvial flood risk analysis," published in the Environmental Research Letters Journal Each file is a geospatial, WGS84, 1/1200 decimal degrees resolution (~90m) GeoTIFF raster with a classified integer value representing how many out of the 6 models agree that a cell is wet (note 0 - dry/no data)

This dataset is the output from the Global Flood Model intercomparison project undertaken on behalf of the Global Flood Partnership. The methodology is described in Trigg et al., 2016, "The credibility challenge for global fluvial flood risk analysis," published in the Environmental Research Letters Journal.   Each file is a geospatial, WGS84, 1/1200 decimal degrees resolution (~90m) GeoTIFF raster with a classified integer value representing how many out of the 6 models agree that a cell is wet (note 0 - dry/no data)
